Principle: | Turbine wheel | |
Material: | Stainless steel 304,316L | |
Display: | English LCD display | |
Output: | Pulse, 4--20mA output | |
Accuracy: | +_1 +_1.5 +_2.5 | |
Pressure: | 10,16,25,40 bar | |
Medium: | Gas,air ,natural gas etc | |
Power: | 24VDC ,Battery | |
Diameter: | DN15-DN300 | |
Max temp: | 60degC | |
Connection: | Flange | |
Warranty: | 12months | |
Brand: | XINSIER | |
Inquiry |
DESCRIPTION :

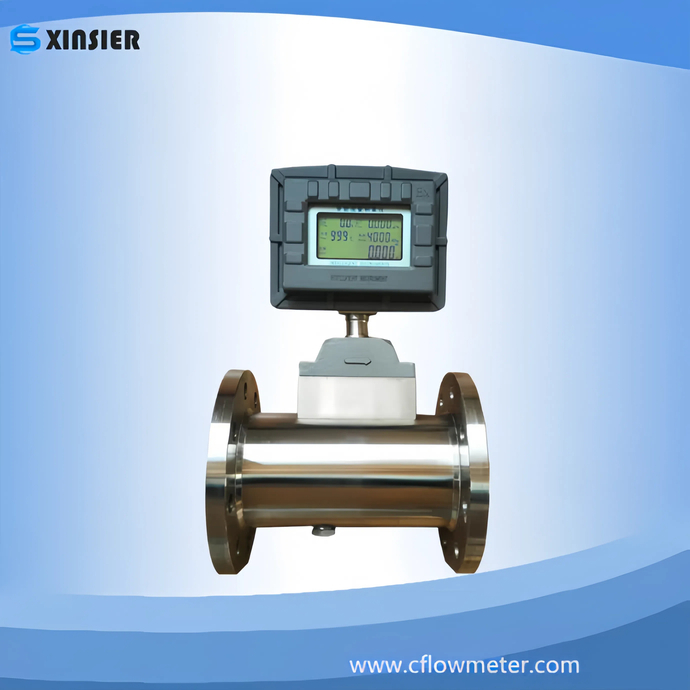

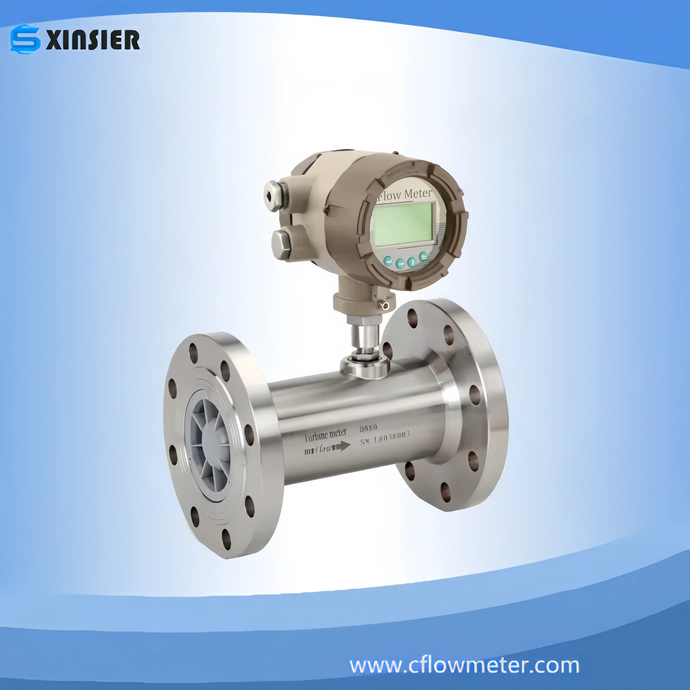

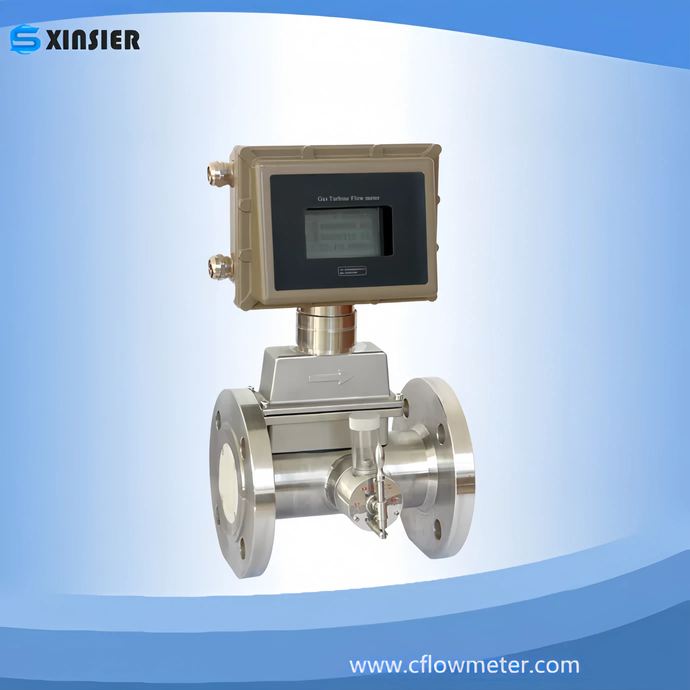

Gas turbine flowmeter uses a turbine for measurement. It first converts the flow rate into the rotational speed of the turbine, and converts the rotational speed into an electrical signal proportional to the flow rate.Gas turbine flowmeter is used to detect instantaneous flow and total integrated flow. Its output signal is frequency, which is easy to digitize.
Gas turbine flowmeter( flow transducer) is a high accuracy flow sensor .It can be used in the fields of air,natural gas other gas to be measured.Several output and display methods can be selected.
The induction coil and the permanent magnet are fixed on the housing together. When the ferromagnetic turbine blade passes the magnet, the reluctance of the magnetic circuit changes, thereby generating an induction signal.
The signal is amplified and reshaped by the amplifier and sent to the counter or frequency meter. The total accumulated flow is displayed. At the same time, the pulse frequency undergoes frequency-voltage conversion to indicate instantaneous flow.
SPECIFICATIONS :
Accuracy: popularly +_1% preferred(special calibrated), +_1.5%, +_2.5%.
Low velocity ,Minimum velocity of flow:Less than 1.5m/s
Nominal diameter: DN15-DN300
Working pressure: 1MPa, 1.6MPa, 2.5MPa, 4.0MPa
Medium temperature: -20~+120centigrade(stainless steel), 0~+120centigrade(PP); -0~+60centigrade(UVPC).
Ambient temperature: -20~+55centigrade
Humidity: Less than 95%
Power supply:
1. LCD display without output type, 3.6V Lithium Battery.
2. Pulse output : A, without display pulse output, +5~24VDC
B, LCD display without pulse output, +12~24VDC
3. Two-wire 4-20mA output, +24VDC
Housing protection grade: IP65 ,IP66
Explosion-proof: ExiaIICT4 or ExdIIBT4
Remote: Pulse output signal remote distance
Compensation with temperature and pressure compensation (optional)
Lubricate with lubricate system (optional)
REFERENCE FLOW RANGE : -
DN(mm) | Normal Flow Range(Nm 3 /h) | |||||
Accur +-1.0 % | Accur +-1.5 % | Accur+- 2.5 % | ||||
Min | Max | Min | Max | Min | Max | |
15* | | | | | 1.5 | 7.5 |
25 | | | | | 6 | 42 |
40 | 8.4 | 84 | 8.4 | 160 | 6.5 | 200 |
50 | 16.8 | 168 | 16.8 | 336 | 11 | 336 |
80 | 34 | 340 | 34 | 680 | 34 | 1000 |
100 | 51 | 510 | 51 | 1020 | 51 | 1600 |
150 | 98 | 980 | 98 | 1960 | 130 | 3000 |
200 | 170 | 1700 | 170 | 2550 | 140 | 4000 |
250 | 230 | 2300 | 230 | 3450 | 200 | 6000 |
