Principle:Variable area flowmeter
Material:Carbon steel, Aluminium, SS304
Connection:Thread,Hose,Flange
Diameter:DN4--DN50
Accuracy:+_2.5
Max temp:120degC
Max press:0.7--1.0Mpa
Medium:Liquid,Gas
Main part:Glass tube
Float:Stainless steel ,PTFE lined
Anti-corrosive:Available
Warranty:12months
Brand:XINSIER
Inquiry

DESCRIPTION :

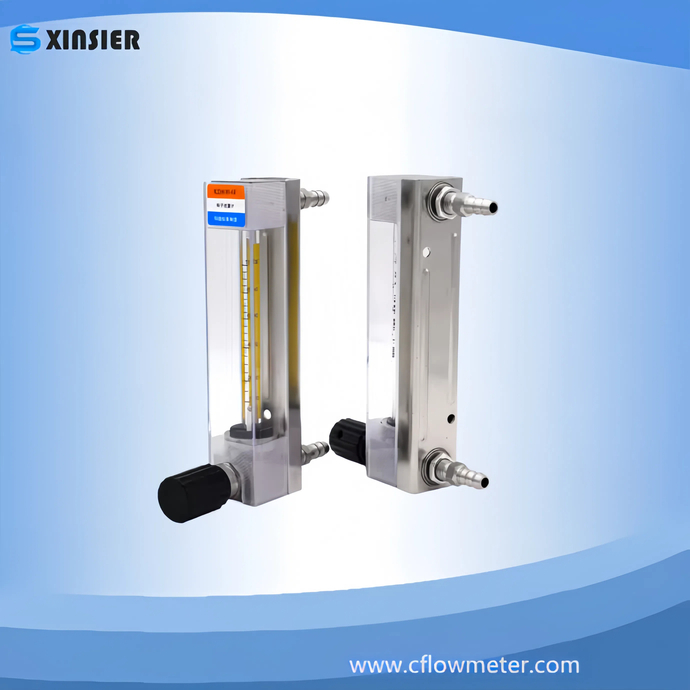

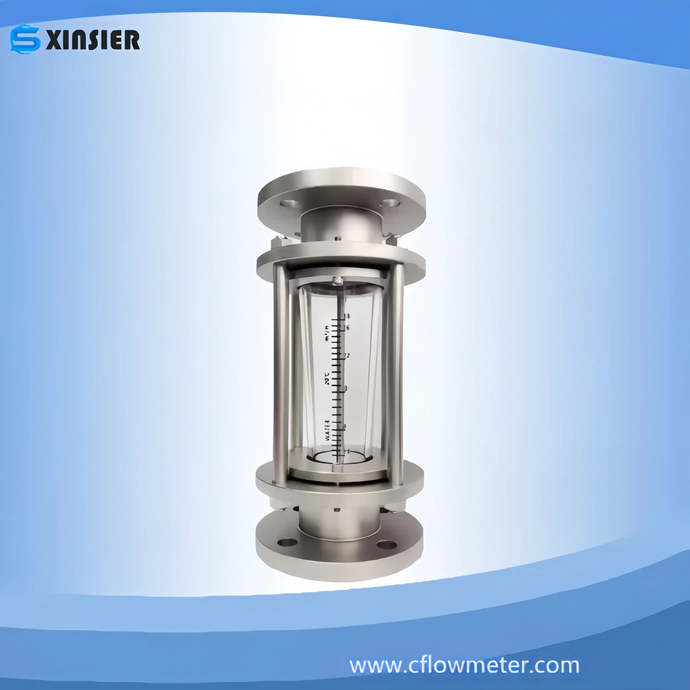

Glass tube Rotameter Flowmeter are widely used in water treatment .chemical industry, petroleum, light industry, medicine, environmental

protection, food, measurement, testing and scientific research institutes. They are used to measure the flow rate of single-phase non-pulse

fluid ,say water ,air , liquid and gas .

Anti-corrosive glass rotameter have a good corrosion resistance, and can be used to measure acid (except hydrofluoric acid), alkali,

oxidizer and other corrosive gases or liquid. They are suitable for chemical industry, pharmacy, papermaking, sewage disposal etc.

The flowmeter is mainly composed of a piece of taper glass pipe with bigger top and smaller bottom,a floater moving up and down along

with the fluid flow.When the fluid flows across the taper pipe from bottom to top, the floater rises under the lift force "S" on the floater due

to the fluid dynamic energy and the fluid buoyancy force "A".When the sum of the lift force "S" and the buoyancy force "A" is equal to the floater

weight "G", the floater is in equilibrium and stable at a certain height. The scale on the taper pipe indicates the fluid flow.

EXAMPLE:

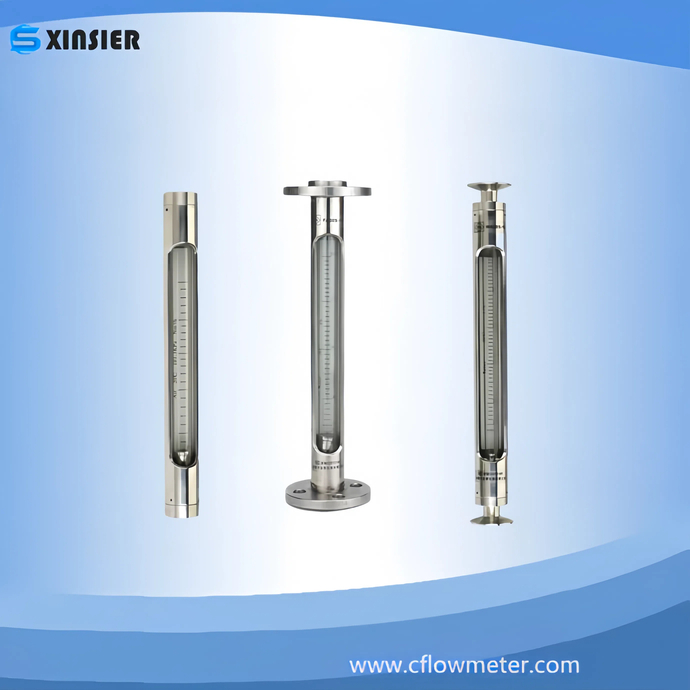

Glass Tube Rotameter Flowmeter G/R/F series.This series have both normal type (using for general noncorrosive fluid)

and anticorrosiontype(using  for corrosive fluid.).This series are designed with compactness,light structure, nice figure,

convenient maintenance,safe and reliability, easy installation.The flange of F10, 20, 30 types can rotate to be aligned easily.

G/R/F10, 20, 30 glass tube flowmeter has the following connections: Threaded type(G10, 20, 30 types),

hose type(R10, 20,30 types),flange type(F10,20,30 types)

MAIN DATASHEETS  :                      -


  DN (mm)

Normal type

Anti-corrosion type

Flow range

Pressure loss (Pa)

Allowed measuring   fluid condition

Accuracy degree

Water (20℃)L/h

Air (20℃/101325Pa)m3/h

Pressure (MPa)

Temp    .(℃)

15

G10/20/30-15
  R10/20/30-15
  F10/20/30-15

G10/20/30-15F
  R10/20/30-15F
  F10/20/30-15F

10~100
  16~160
  25~250
  40~400
  63~630

0.12~1.2
  0.2~2
  0.3~3
  0.5~5
  0.8~8
  1.2~12
  2~20

1000
  1100
  1200
  1700
  2000
  2500
  3000

≤1.0























-20~+120























2.5

25

G10/20/30-25
  R10/20/30-25
  F10/20/30-25

G10/20/30-25F
  R10/20/30-25F
  F10/20/30-25F

63~630
  100~1000
  160~1600
  250~2500

2~20
  3~30
  5~50
  6~60

2800
  4000
  5000
  6000

40

G10/20/30-40
  R10/20/30-40
  F10/20/30-40

G10/20/30-40F
  R10/20/30-40F
  F10/20/30-40F

160~1600
  250~2500
  400~4000

5~50
  8~80
  12~120

3400
  4000
  5000

≤0.9

50

G10/20/30-50
  R10/20/30-50
  F10/20/30-50

G10/20/30-50F
  R10/20/30-50F
  F10/20/30-50F

400~4000
  630~6300
  1000~10000

12~120
  20~200
  30~300

4800
  6500
  8500

≤0.7
