Principle: | Variable area Flowmeter | |
Material: | Stainless steel 304 ,316L | |
Diameter: | DN15--DN200 mm | |
Medium: | Liquid or Gas | |
Accuracy: | +_1.5 +_2.5 | |
Measruing ratio: | 1: 10 normally | |
Display: | Mechanical type or LCD display | |
Output: | 4-20mA output | |
Installation: | Vertical or Horizontial (Customized) | |
Connection: | Flange, Thread,Triclamp | |
Max pressure: | 1.6--4.0Mpa | |
Warranty: | 12 months | |
Brand: | XINSIER | |
Inquiry |
DESCRIPTION :

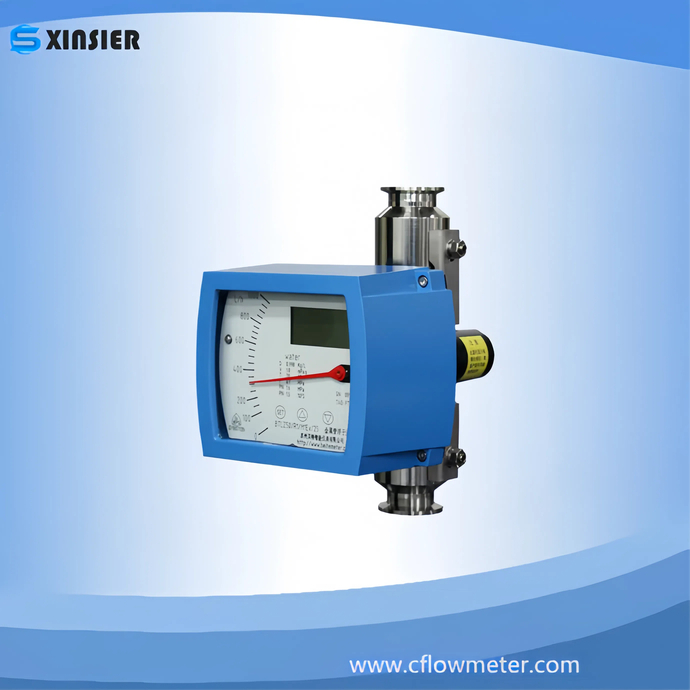

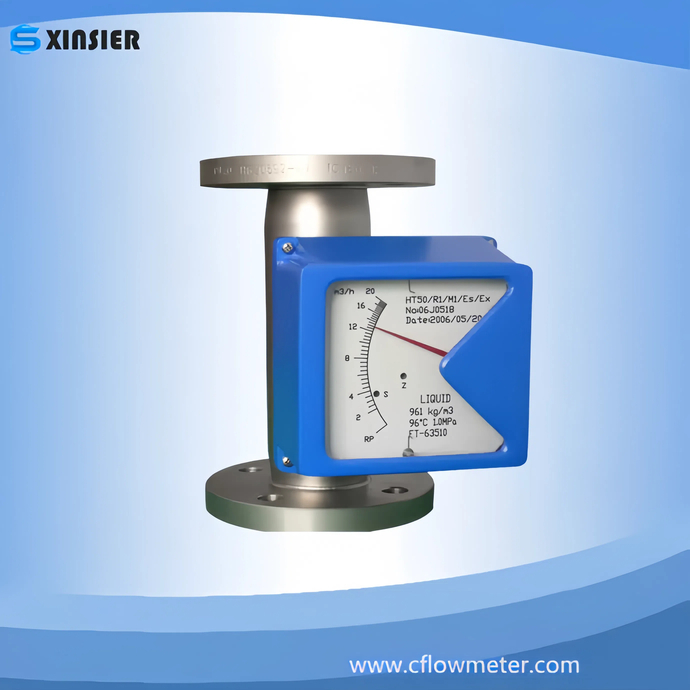

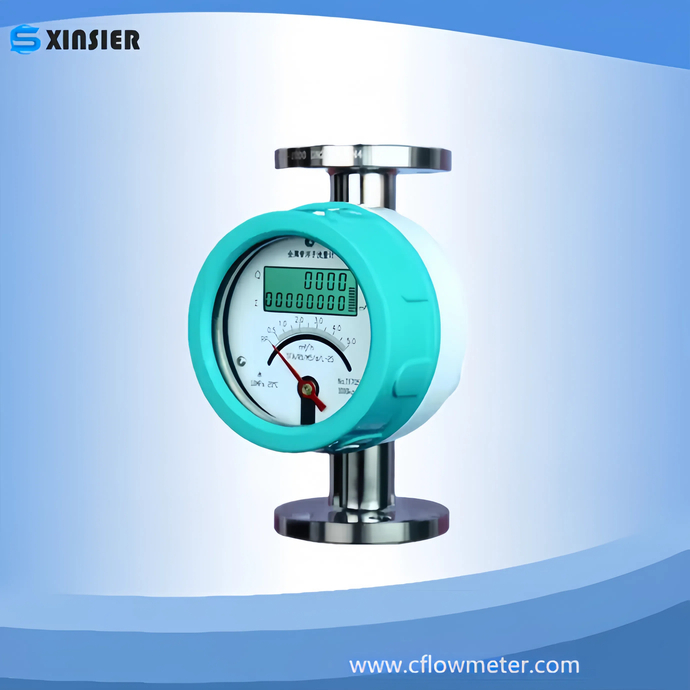

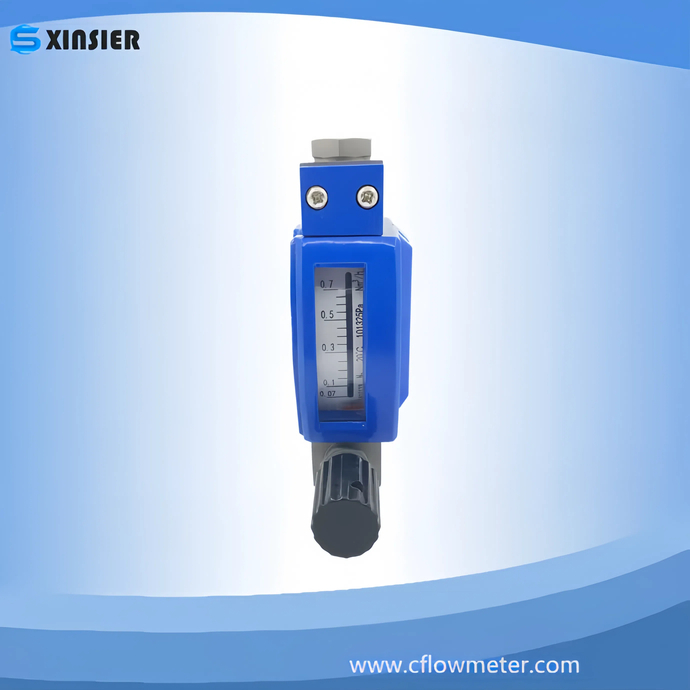

Metallic Rotameter Flowmeter ,also called Metal tube flowmeter or Metal tube Rotameter .
They are based on the variable area type measurement principle, widely used to measure the flow of the gases and liquids
in the condition of complex sever surroundings in the industry of petroleum, chemical, power-generating, medicine-making, food, water treatment, etc.
CLASSIFICATION :
You can choose from the followings:
the mechanical indication type,
the LCD display and remote transmission type,
the anti-corrosive type,
some other type also negotiable
SPECIFICATIONS :
Mechanicial indicator , or English LCD display
Vertical installation or Horizontial installation (Customized )
We can make customized Metallic Rotameter Flowmeter according to users’ special need.
Flange :ANSI 150# ANSI300# ,JIS standard ,DIN ,GB standard and so on are available
Thread :GB standard,BSP,NPT and so on are avaiable
Remote: standard analog signal output of 4--20mA spot indication, accumulation, digital communication, modifying the measured
parameters on the spot, different methods of power supply.
Power supply:24VDC or non
Communication:RS485,MODBUS ,HART and so on
Other special needs are negotiable.
MAIN TECHNICIAL DATASHEET :
Anti corrosive Diameter | Normal Diameter | Measuring Range | Maximum Pressure Loss |
| ||
DN | DN | Air | Water (20℃)
(L/h) | Air (KPa) | Water KPa) |
|
15 | 15 | 0.05-0.5 | 1.6-16 | 7.0 | 6.4 |
|
0.07-0.7 | 2.5-25 | 7.1 | 6.5 |
| ||
0.11-1.1 | 4.0-40 | 7.2 | 6.5 |
| ||
0.18-1.8 | 6.0-60 | 7.3 | 6.6 |
| ||
0.28-2.8 | 10-100 | 7.5 | 6.6 |
| ||
0.40-4.0 | 16-160 | 8.0 | 6.8 |
| ||
0.70-7.0 | 25-250 | 10.8 | 7.2 |
| ||
1.00-10 | 40-400 | 10 | 8.6 |
| ||
1.60-16 | 60-600 | 14 | 11.0 |
| ||
25 |
| 80-800 |
|
|
| |
25 | 3.00-30 | 100-1000 | 7.7 | 7.0 |
| |
4.5-45 | 160-1600 | 8.8 | 8.0 |
| ||
7.00-70 | 250-2500 | 12 | 10.8 |
| ||
11-110 | 400-4000 | 19 | 15.8 |
| ||
50 |
| 500-5000 |
| 16.2 |
| |
50 | 18-180 | 600-6000 | 8.6 | 8.1 |
| |
25-250 | 1000-10000 | 10.4 | 11 |
| ||
80 | 40-400 | 1600-16000 | 12.6 | 17 |
| |
80 | 50-500 | 2000-20000 | 15.5 | 6.3 |
| |
75-750 | 2500-25000 | 17.2 | 8.1 |
| ||
100 | 100 |
| 4000-40000 |
|
|
|
| 6000-60000 |
|
|
| ||
125 |
| |||||
125 |
| 8000-80000 |
|
|
| |
|
| |||||
| 10000-100000 |
|
|
|
-
