| Principle: | Ultrasonic Transmit-time | |
| Display: | English LCD display | |
| Medium: | Liquid | |
| Connection: | Clamp on | |
| Power: | Ni-Hi rechargeable battery | |
| Accuracy: | +_1 +_1.5 | |
| Packing: | Portable case | |
| Diameter: | DN15--DN1000 | |
| Sensor: | TS-2,TM-1,TL-1 | |
| Unit: | M3 , Liter etc | |
| Commun: | RS485 RS232 | |
| Warranty: | 12months | |
| Brand: | XINSIER | |
| Inquiry | ||
DESCRIPTIONS :

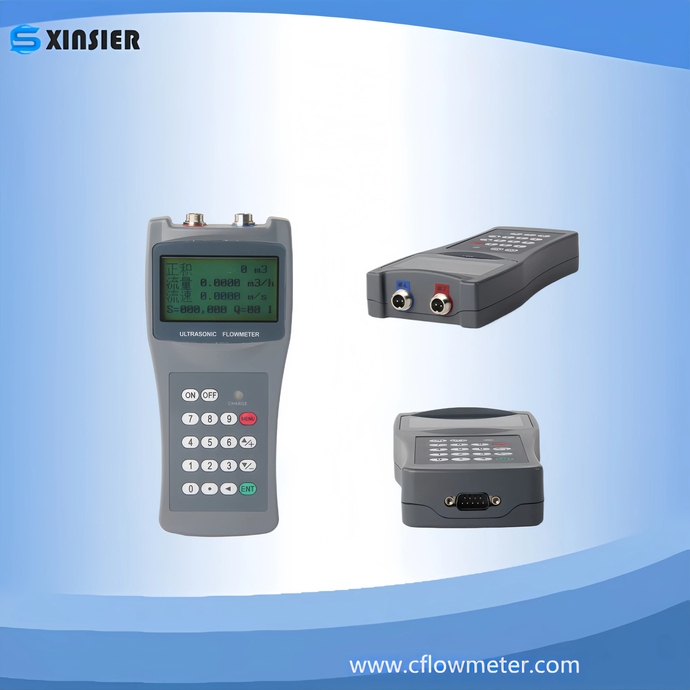

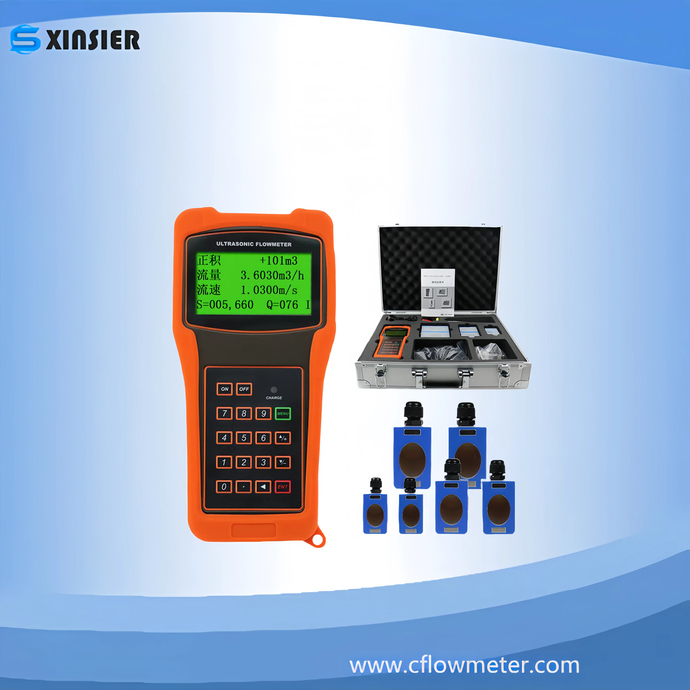

Portable Ultrasonic Flowmeter is designed to measure the liquid velocity of liquid within a closed conduit .The transducer are a
non-contracting,non-invasive, clamp-on type,which will procide benedfits of non-touling operation and easy instalation .
This transit time flowmeter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers
are clamped on the outside of a closed pipe at a specific distance from each other.
Portable ultrasonic flowmeter can be virtually applied to a wide range of measurements. A variety of liquid applications can be
accommodated: ultrapure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant efflu
ent, etc. Because the instrument and transducers are noncontacting and have no moving parts, the flow meter can not be aff
ected by system pressure, fouling or wear.
MAIN SPECIFICATIONS :
Linearity | 0.5% |
Repeatability | 0.2% |
Accuracy | ±1% of reading at rates>0.2 mps |
Response Time | 0-999 seconds, user-configurable |
Velocity | ±32 m/s |
Pipe Size | 15mm-6000mm |
Totalizer | 7-digit totals for net, positive and negative flow respectively |
Liquid Types | Clean liquid |
Security | Setup values Modification Lockout. Access code needs unlocking |
Display | 4x8 Chinese characters or 4x16 English letters |
Communication Interface | RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer . |
Transducer Cord Length | Standard 5m x 2, optional 10m x 2 |
Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours . 100V-240VAC power supply for the charger |
Data Logger | Built-in data logger can store over 2000 lines of data |
Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
Housing Material | ABS |
Case Size | 210x90x30mm |
Handset Weight | 500g with batteries |
