Principle:Electromagnetic conductive
Converter:Separated ,split, remote
Display:English LCD display
Output:Pulse, 4--20mA output
Accuracy:+_0.5 +_1 +- 0.3
Communic:RS485,RS232,HART
Medium:Conductive liquid
Power:24VDC ,220VAC
Diameter:DN4--DN2200
Liner material:Rubber,PTFE ,PFA
Electrode:SS316L,HC,HB.Tan,Pt
Warranty:12months
Brand:XINSIER
Inquiry

DESCRIPTION :

Electromagnetic flowmeters are suitable for measuring the flow of almost all electrically conducting liquids,pastes and slurries.

A prerequisite is that the medium must have a minimum conductivity of 5 uS/cm. The temperature,pressure ,density and viscosity

have no infulence on the result .

FEATURES :

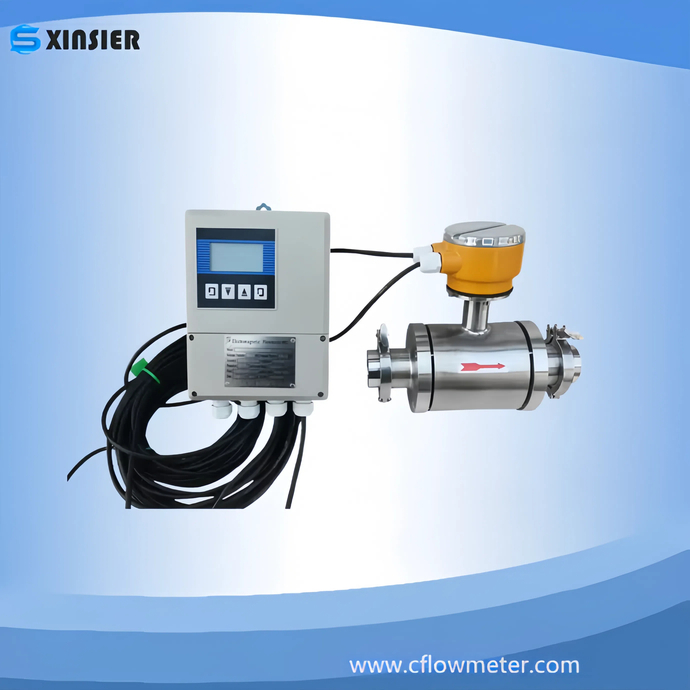

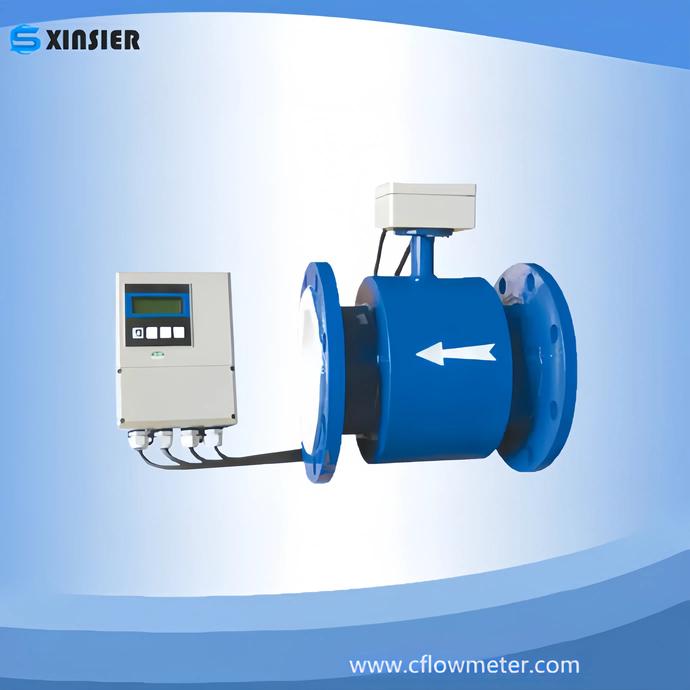

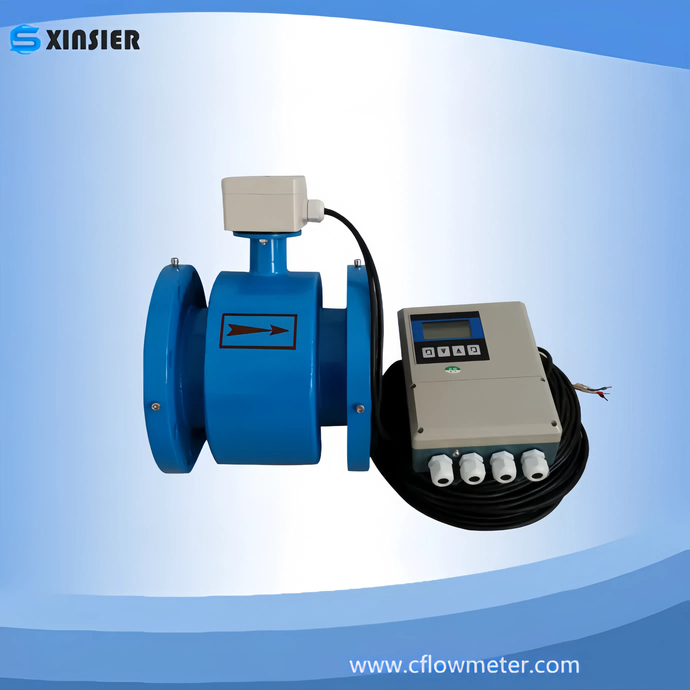

Separated converter type electromagnetci flowmeter has separated converter and transducer .

The cable between converter and transducer can be 10 m, 15m ,20 m and even more.

Thus user can read and control flowmeter far away from the on-site pipe.

APPLICATIONS :

The main applications of the electromagnetic flowmeters can be found in the following sectors:
Water and waste water ,Chemical and pharmaceutical industries ,Food and beverage industry ,Mining,aggregates and

cements industries ,Pulp and paper industry ,Steel industry ,Power,utlity and chilled water industry.

CLASSIFICATIONS :

Based on the standard of output signal connection and excitation (or power supply) connection, there are four-wire system and two-wire system;

Based on the assembly method of converter and sensor, there are split type and integrated type;

Based on the connection method of the flow sensor and the pipeline, there are flange type, clamping type, sanitary type, and insert type;

Based on whether the electrode of the flow sensor is in contact with the measured liquid, there are contact type and non-contact type;

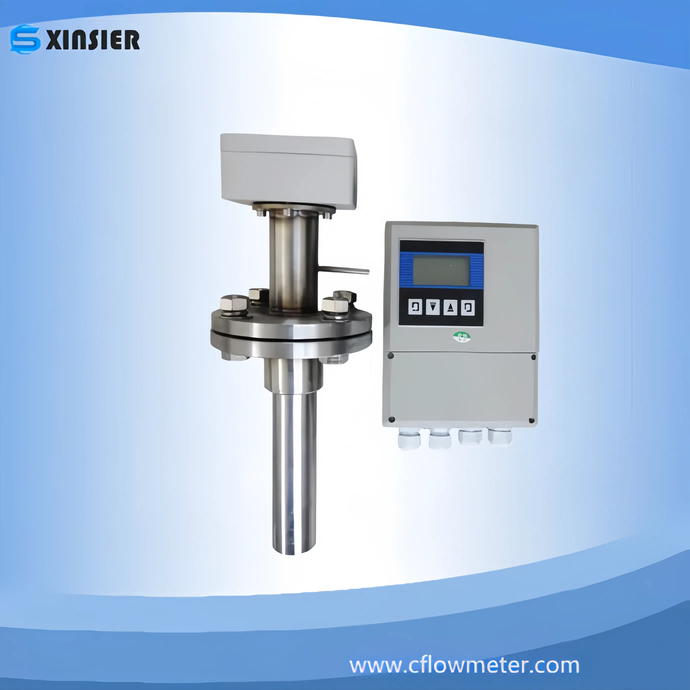

Based on the structure of the flow sensor, there are short tube type and plug-in type (plug-in electromagnetic flowmeter);

Classified by purpose, there are general type, explosion-proof type, sanitary type, anti-intrusion type and diving type (open channel flowmeter) for

open channel flow measurement.

SELECTIONS :

When choosing a suitable electromagnetic flowmeter, please check the following parameters:Pipe diameter; Installation structure;Electrode material;Lining material;Power supply requirements;Signal output requirements;Pipeline pressure;Medium temperature and so on .
