DESCRIPTION :

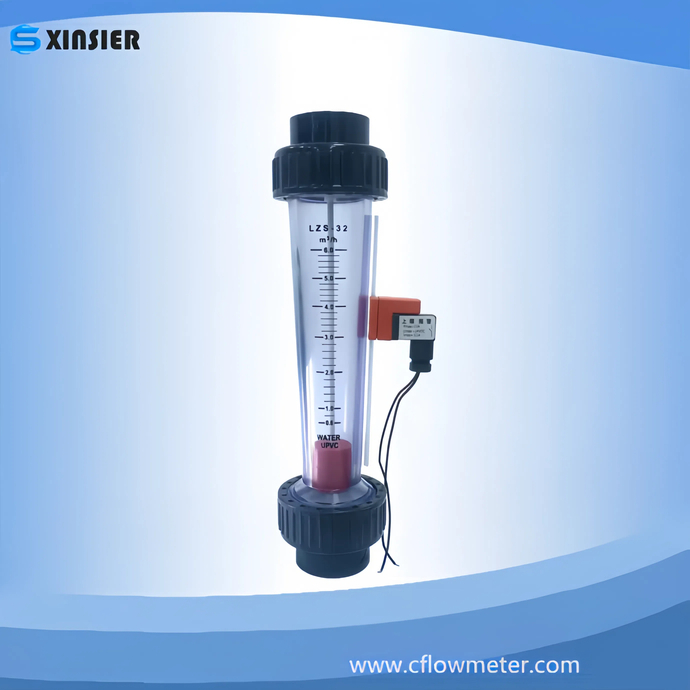

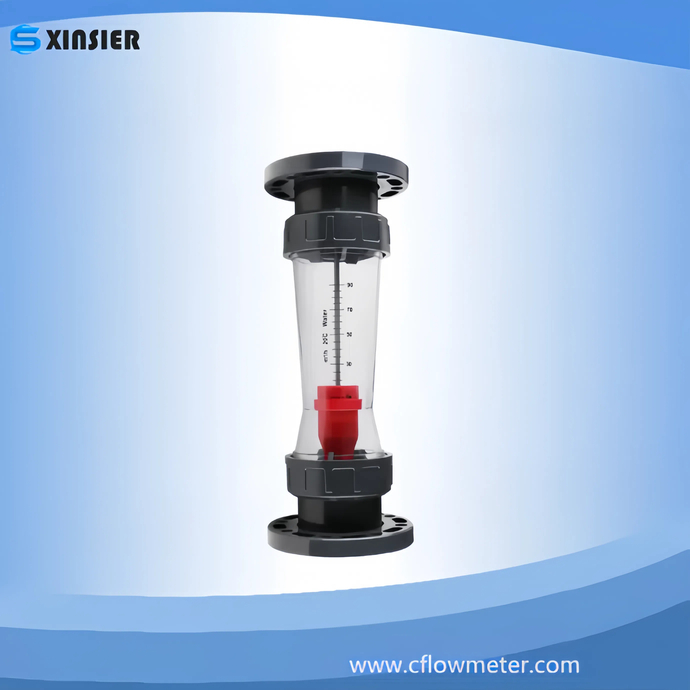

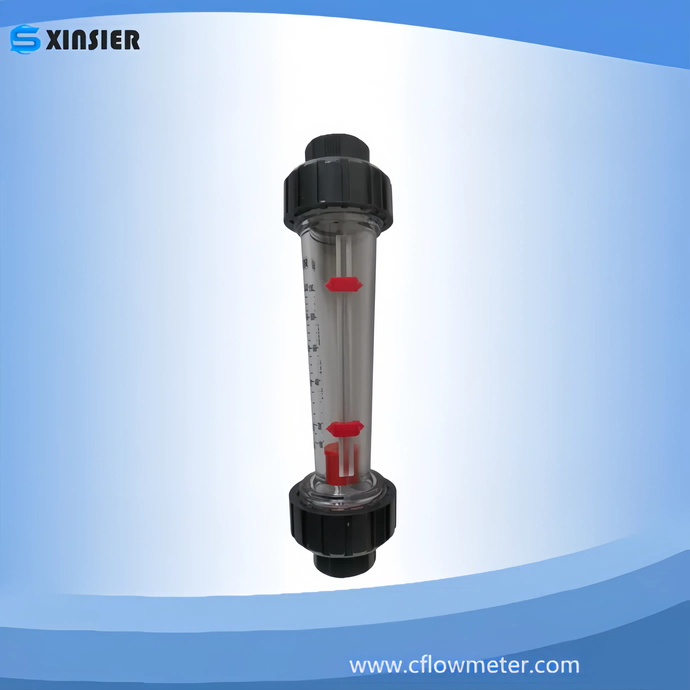

LZS Plastic tube Rotameter Flowmeter is also called the variable area (or float) flowmeter. The material of measuring tube is made of high-quality and transparent plastic.

The flowmeter is composed of a piece of taper glass pipe with bigger bottom and smaller top and a floater moving up and down along

with the fluid flow.When the fluid flows across the taper pipe from bottom to top, the floater rises under the lift force "S" on the floater due to the

fluid dynamic energy and the fluid buoyancy force "A".When the sum of the lift force "S" and the buoyancy force "A" is equal to the floater weight "G",

the floater is in equilibrium and stable at a certain height. The scale on the taper pipe indicates the fluid flow.

APPLICIATION :

This flowmeter is mainly applied to form a complete set in clean water treatment and environmental protection projects.It also

can be used in chemical industry, petroleum, light industry, medicial, fertilizer, food,papermaking and scientific research, etc..

To measure the single-phase nonpulsingflow of liquid and gas.

LZS Plastic  tube Rotameter Flowmeter have the characteristics of high transparency, reading ocular,in rare cases to be

broken, light weight, long-life,convenient for installation. etc.

REFERENCE FLOW RANGE :

More flow range and connection mode can be customized .
