| Principle: | Transit time ultrasonic | |
| Medium: | Liquid | |
| Display: | LCD english display | |
| Output: | 4--20mA | |
| Communication: | RS485 ,RS232 | |
| Accuracy: | +_1.5-2.5 | |
| Connection: | Clamp-on | |
| Diameter: | DN15--DN1000 mm | |
| Power: | 220VAC, 24VDC | |
| Protocols: | MODBUS | |
| Signal cable: | 5m x2 | |
| Warranty: | 12months | |
| Brand: | XINSIER | |
| Inquiry | ||
DESCRIPTION :

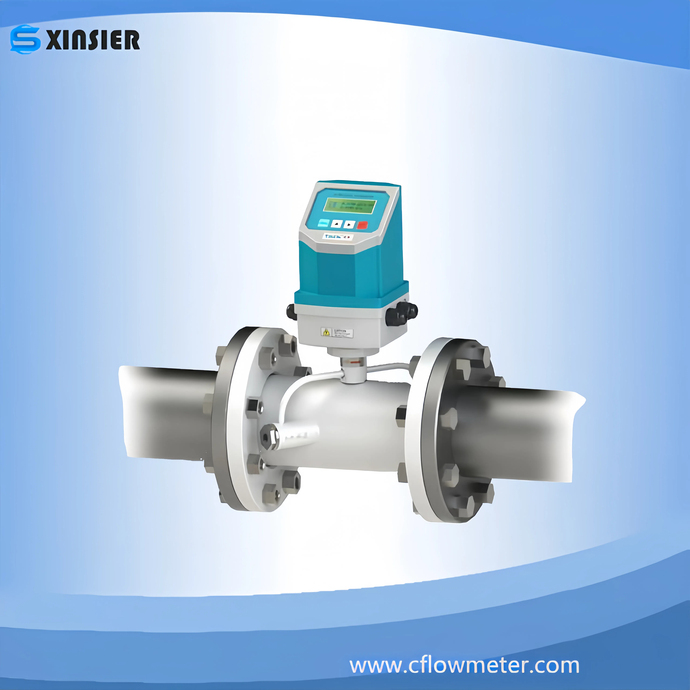

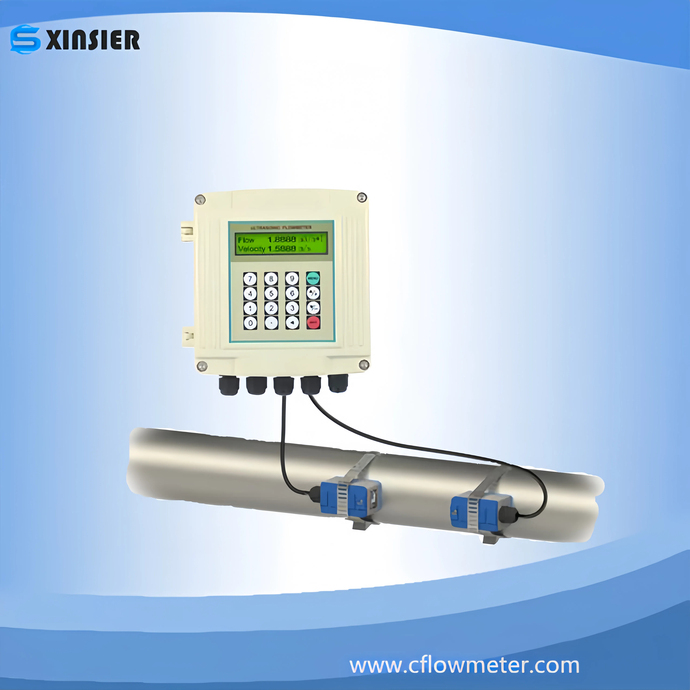

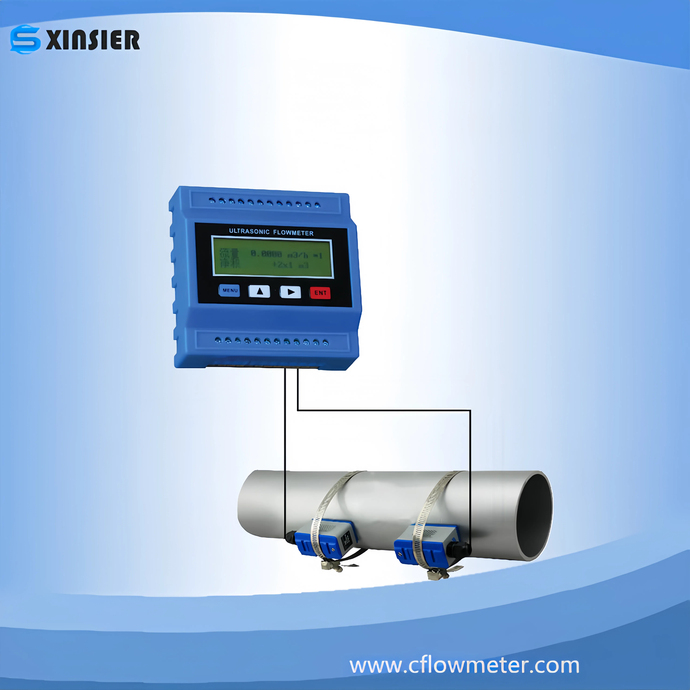

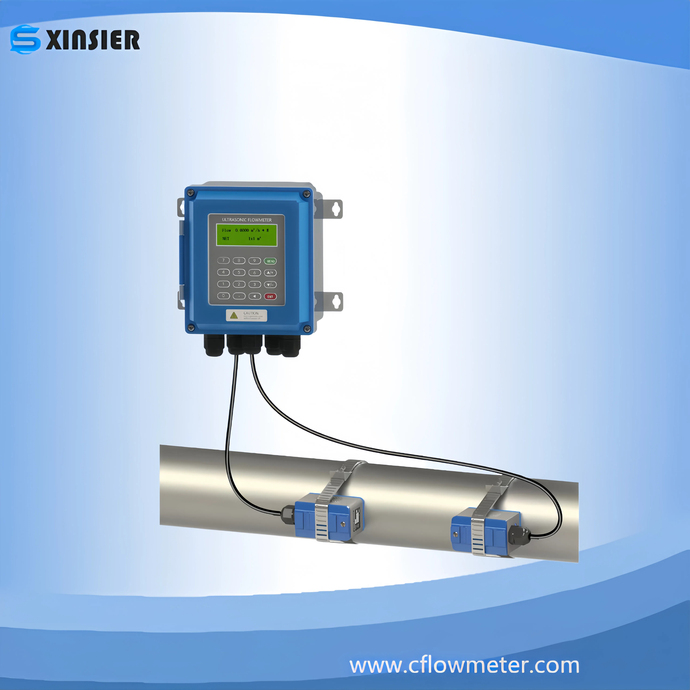

Ultrasonic Flowmeter is designed to measure the fluid of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation. transittime flowmeter utilizes two transducers that function as both ultrasonic transmitters and receivers.
The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers
can bemounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection of the mounting method depends on pipe and liquid characteristics. The flow meter operates by
transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the
transit time that it takes for sound to travel between the two transducers.
Linearity: 0.5%, Repeatability: 0.2%, Accuracy: ± 1 % Easy to operate. Several type transducers for selection, measuring
size is from DN15mm to DN6000mm Adopt low voltage, multipulse technology to improve accuracy, useful life and reliability.
Powerful Recording Function, record the totalizer data of the last 64 days/64 monthes/5 years. The wall-mounting flow meter can be applied to a wide range of pipe flow measurements. Applicableliquids include pure liquids as well
as liquid with small quantity of tiny particles.
MAIN SPECIFICATIONS :
Items | Specifications | |
Main Specs | Accuracy | ±1% |
Repeatability | +- 0.2% | |
Principle | Transit-time measuring principle | |
Measurement | 500ms | |
Display | LCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc. | |
Output | Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%. | |
OCT output: Frequency signal (1~9999HZ) | ||
Relay output: over 20 source signal (no signal, reverse flow etc.) | ||
RS485 serial port | ||
Signal output | Input | Three analogue input |
Three-wire PT100 resistor input (optional) | ||
Other functions | Automatically record the totaliser data of the last 64 days / 64 months / 5 years; Allow manual or automatic flow loss compensation | |
Pipe | material | Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed |
Size | 15-6000mm | |
Straight pipe | In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter) | |
Liquid | Types | Water, sea water,acid & alkali liquid, alcohol |
Temperature | Standard: -30 - 90centigrade ,High-temperature:-30 - 160centigrade | |
Turbidity | Less than 10000ppm, with a little bubble | |
| Flow Direction | Bi-directional measuring, net flow/heat measuring |
Environment | Temperature | Main Unit: -30 - 80centigrade |
Transducer: -40-110centigrade , Temperature transducer: select on enquiry | ||
Humidity | Main Unit: 85% RH | |
Transducer: water-immersible, water depth less than 3m | ||
Cable | Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m | |
Power Supply | AC220V or DC24V | |
Power Consumption | Less than 1.5W | |
Protocols | MODBUS | |
