Principle: | Pressure Difference | |
Material: | stainless steel 304,316L | |
Medium: | Gas ,Liquid | |
Accuracy: | +_0.5 +_1 | |
Display: | LCD display | |
Output: | Pulse,4--20mA output | |
Main part: | Orifice palte | |
Power: | 24VDC or negotiable | |
Max press: | 1.6--40Mpa | |
Max temp: | -50-300 degC | |
Connection: | Flange ,Wafer | |
Warranty: | 12months | |
Brand: | XINSIER | |
Inquiry |
DESCRIPTION :

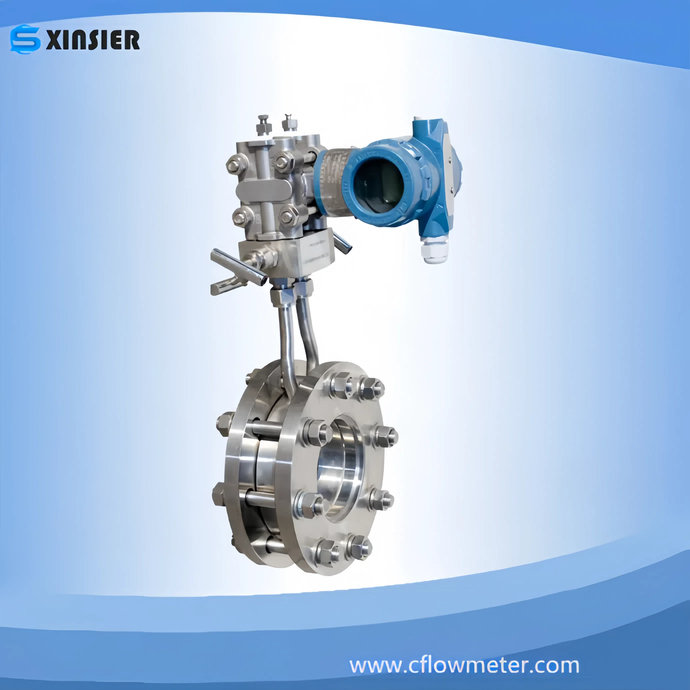

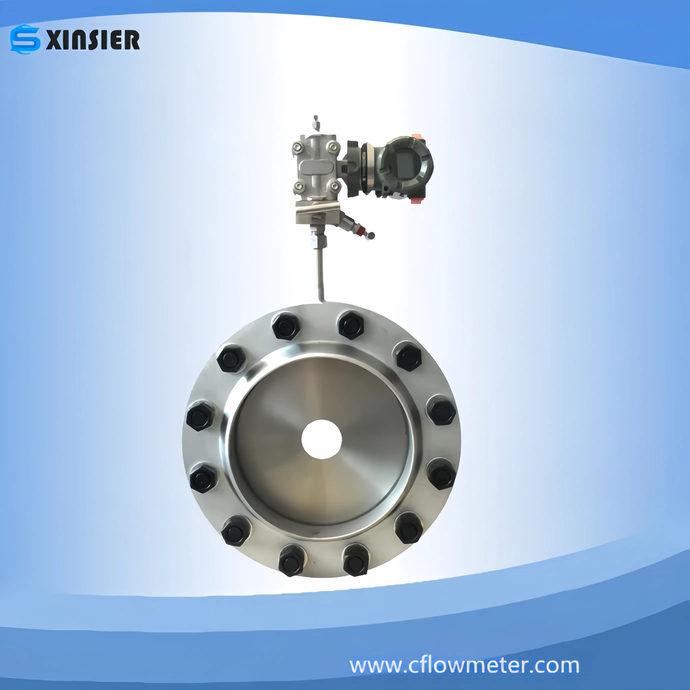

Orifice plate is used for flow rate measuring in pipe systems. With orifice plate, pressure drop is created. Based on the
magnitude of pressure drop,flow rate can be calculated.
Orifice plate calculator can be used for both liquids and gases. Fluid is considered as incompressible, so density (rho)
and temperature (T) are constant through tube. Also, gas is considered as ideal.
APPLICIATION :
Suitable for liquids, gases and steam applications in line sizes from DN15 to DN200 and at pressures up to 100 bar,
it combines all the major components needed for an orifice plate installation in one assembly. This eliminates the
need for users to design, source and install a separate manifold, transmitter and impulse piping, typically cutting the
cost of installation and commissioning.
CHARACTERISTIC :
Throttling device is a differential pressure flowmeter sensors, with the differential pressure transmitter and display
devices (or computer) supporting the use, enabling the measurement of fluid flow and achieve the accumulation,
display and control. Because of its simple structure, easy installation, the use of reliable and suitable for a wide range
of (standard throttling device diameter measurements available from 50mm-12mm, a special application of throttle
device can also be as small as 20mm diameter as large as 3000mm; measuring temperatures of up to 550 ℃; pressure
up to 40MPa; measured the types of media is greater) and standard throttling device also has no separate calibration
of the advantages of industrial automation control flow measurements during the course of one of the main instruments.
Type | Orifice Plate Flowmeter |
Accuracy | +_0.5% |
Body material | SS304 ,SS316L customized |
Wetted material | SS304 ,SS316L customized |
Seal material | None |
Structure | Orifice plate , valves ,diffpressure |
Output | 4-20mA , RS485 |
Display | LCD flow rate, total flow |
Power supply | 24VDC |
Pressure | 16 -- 63 bar |
Temperture | 10—300 centigrade , 550 degC |
Connection | Flange |
